UV-LEDs require unique and delicate production process. Nichia places strict controls from wafer manufacturing to final inspection. For more than 15 years, Nichia UV-LEDs have been chosen by demanding customers that require rigorous quality such as high precision curing, bill checker etc.

表面贴装型发光二极管

(Ts=25°C)

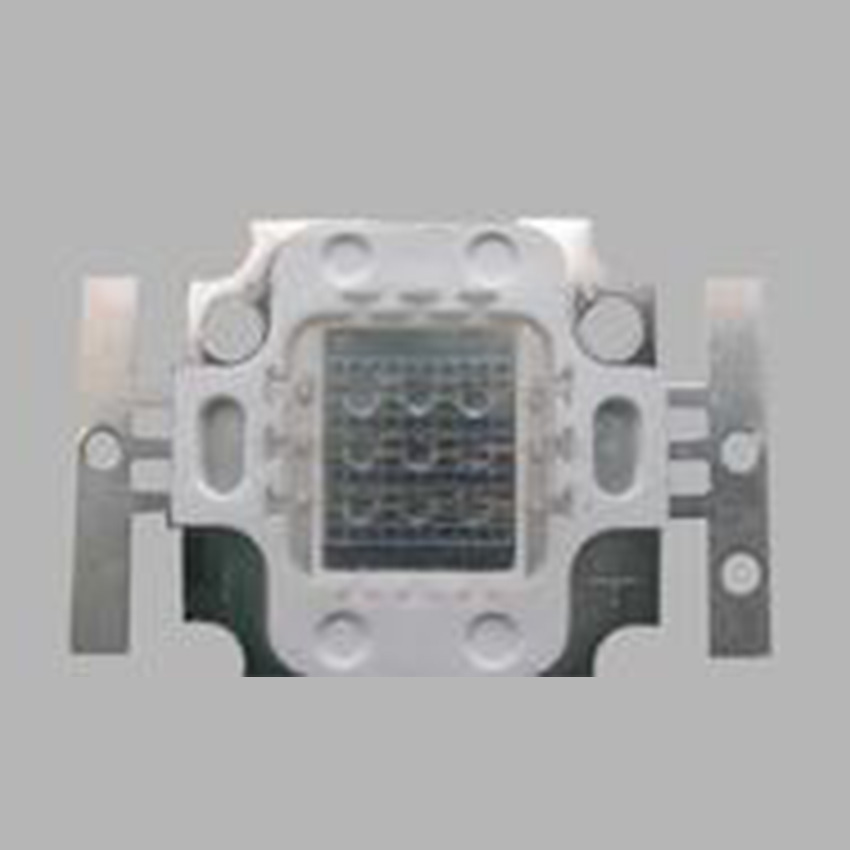

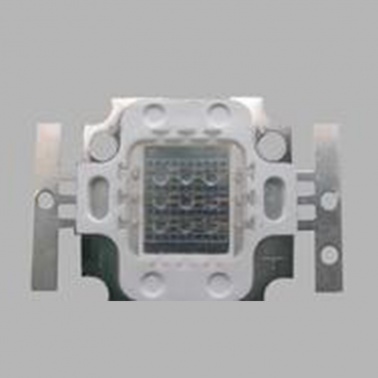

OverviewSize LxWxH (mm)product TypepDFRaypeak Spectrum λp(nm)Optical power Typ(mW)Forward Voltage V F(V)Directivity 2θ ?(degree)I F(mA)TypMaxApplications6.8x6.8x1.92NC4U134Ap .pdf .zip3852,30015.017.2110500NC4U133Ap .pdf .zip3651,95015.417.3110500

.pdfHeat Dissipation from NC4U13xx depending on Tj

OverviewSize LxWxH (mm)product TypepDFRaypeak Spectrum λp(nm)Optical power Typ(mW)Forward Voltage V F(V)Directivity 2θ ?(degree)I F(mA)TypMaxApplications6.8x6.8x2.1NCSU034Bp .pdf .zip3855403.74.3115500NCSU033Bp .pdf .zip3654503.84.4115500

.pdfHeat Dissipation from NCSU03xx depending on Tj

OverviewSize LxWxH (mm)product TypepDFRaypeak Spectrumλp(nm)Optical power Typ(mW)Forward Voltage V F(V)Directivity 2θ ?(degree)I F(mA)TypMaxApplications3.5x3.5x0.88NCSU275p U405.pdf .zip4053703.74.1120500U395.zip3953603.6U385.zip385350
