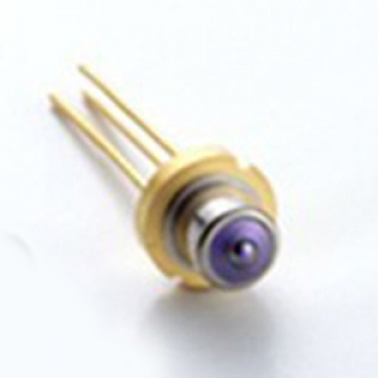

◆TO56 Ball Lens package

◆1310nm Fabry-perot LD

◆155M Data Rates

◆High Stability

◆Low Threshold

Applications

◆Optical Communication System

Absolute maximum ratings

parameter

Symbol

Value

Unit

Forward Current (LD)

IF(LD)

100

mA

Reverse Voltage (LD)

VR(LD)

2

V

Forward Current (pD)

IF(pD)

2

mA

Reverse Voltage (pD)

VR(pD)

20

V

Operating Temperature

TOp

0~ +70

°C

Storage Temperature

TST

-40 ~ +85

°C

Lead Soldering Temperature/Duration

-

260/10

°C/S

Optical & electrical characteristics

parameter

Symbol

Test Condition

Min

Typ

Max

Unit

Output power

pout

Iop=Ith+20

5

-

-

mW

Center Wavelength

λ

CW

1290

1310

1330

nm

Spectral Width

Δλ

CW

-

-

5

nm

Threshold Current

Ith

CW

-

-

15

mA

Operating Current

Iop

CW

-

Ith+20

-

mA

Rise/Fall Time

Tr/Tf

CW

-

0.2

0.7

ns

Monitoring Current

Im

CW

50

-

-

uA

Dark Current

Id

CW

-

-

10

nA

Fiber Coupling Dot

Df

CW

5.8

6.1

6.3

mm
